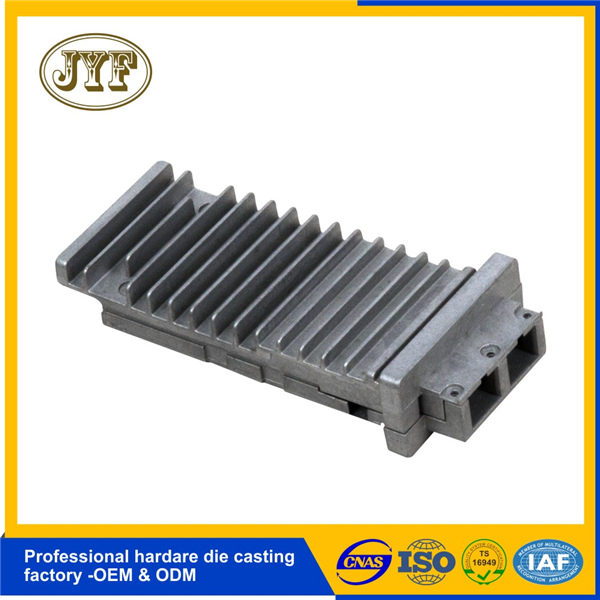

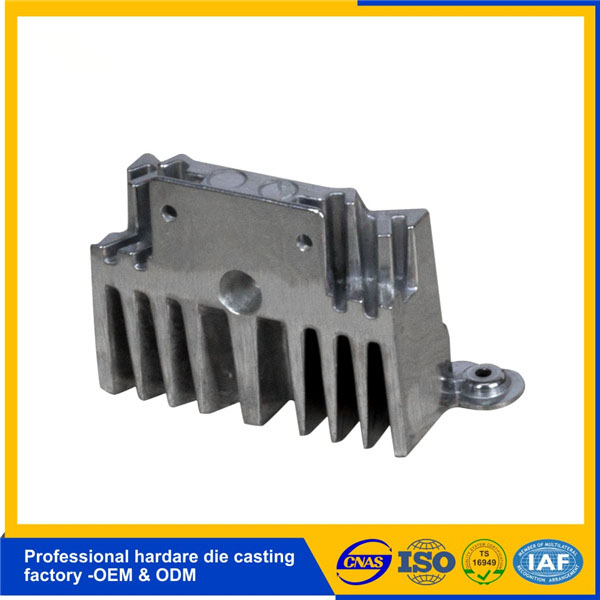

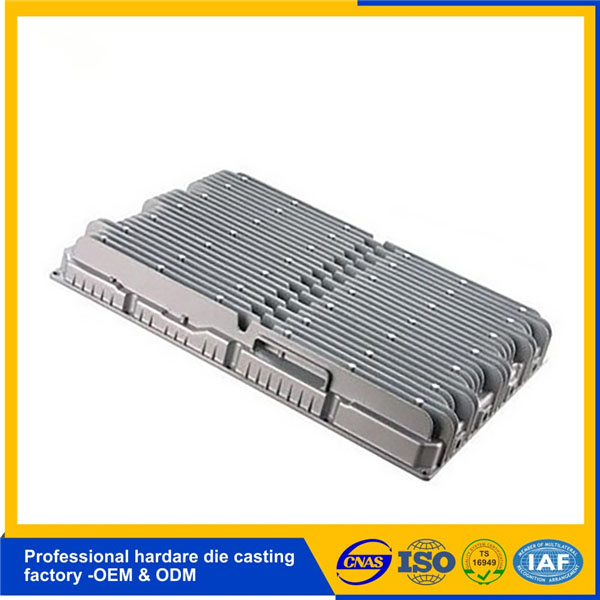

An integrated die-cast heat sink housing specifically designed for automotive power amplifiers (amps) or power control modules. Combining efficient heat dissipation, structural support, and precise mounting capabilities, it serves as a core component ensuring the stable operation of automotive audio systems or power control units.

Core Materials and Processes

    Material: High thermal conductivity aluminum alloy (e.g., ADC12/A380) selected to balance thermal efficiency, structural strength, and lightweight requirements.

    Process: High-pressure die-casting for monolithic construction, featuring seamless fin-to-base integration. Precision CNC machining ensures dimensional accuracy of mounting holes and interfaces.

Key Design Highlights

    High-Density Fin Heat Dissipation Structure: Dense vertical fins significantly increase heat dissipation surface area, rapidly expelling heat generated by amplifier chips or power modules. This prevents distortion, power attenuation, or component damage caused by high temperatures.

Integrated Mounting Interfaces: Pre-set threaded holes, positioning slots, and snap-fit connectors enable precise alignment with amplifier modules, head unit frames, and interior trim panels, simplifying assembly.

    Vibration-Resistant Reinforcement: A monolithic base with reinforced ribs enhances shock and vibration resistance, ensuring durability in demanding road conditions.

Surface Finish: Matte black spray coating or electrophoretic treatment delivers corrosion resistance and premium interior aesthetics, seamlessly matching vehicle cabin design.

Performance Advantages

    Efficient Heat Dissipation: Thermal conductivity ≥100W/(m·K) maintains core chip temperatures within safe limits, ensuring audio output quality and system stability.

Structural Reliability: Passes rigorous vibration, shock, and endurance testing to guarantee stable operation throughout the entire lifecycle.

Assembly Convenience: Integrated design reduces component count, lowering assembly complexity and costs.

    Customizable Adaptation: Tailored development accommodates amplifier power, layout, and interior aesthetics across vehicle models, compatible with mainstream in-vehicle audio platforms.

Application Scenarios

Widely deployed in new energy vehicles and luxury models for in-vehicle audio systems and power control units, serving as a critical component for enhancing automotive electronics stability and user experience.
